Acoustic barrier fencing provides security and privacy using an aesthetically pleasing composite wall panel system. All of our commercial fencing is fast and easy to install and is perfect to use when you need an estate boundary or security wall that has acoustic barrier properties.

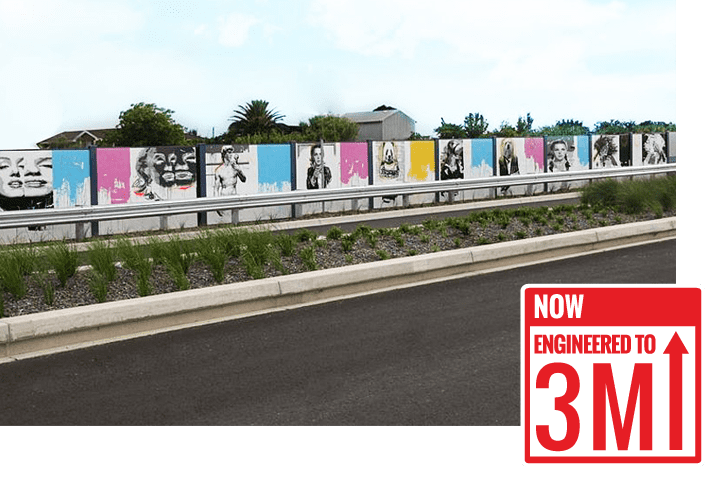

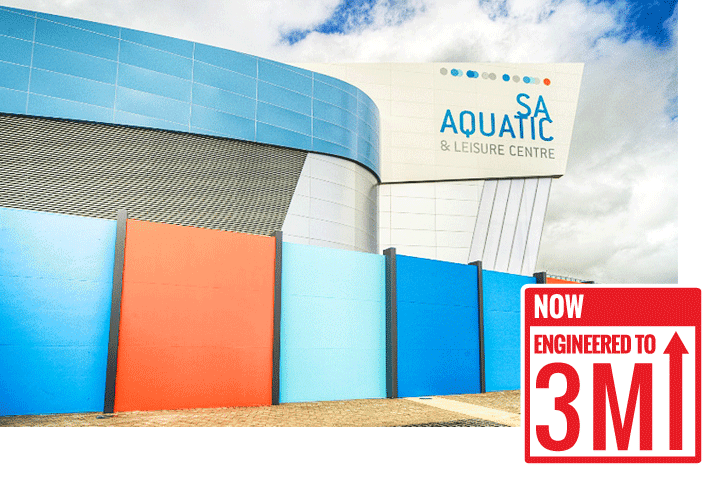

Barrier walls are ideal for commercial premises, roadways and work sites. You’ll avoid the high construction costs of some other commercial wall systems due to the speed and ease of erection.
The commercial wall system consists of composite fibre cement/EPS sandwich panels supported by our unique high tensile aluminium post system. Below we have the general specifications that cover our commercial line of walling products. For more comprehensive information, please contact us.
This information is suitable for use in wind regions A, B, and C (D upon request) AS/NZ 1170.2-2002 Loading Code. In wind regions B, C & D we provide site-specific installation advice. If you are unsure of the wind region your wall will be in, seek advice from your local building consent authority or council. The information here only a guide to gain a general understanding of the various types of composite wall systems we offer.
We have previously supplied compressed fibre cement skinned and composite fibre cement panels up to 32 kgs m2 for customers.
Constant testing and stringent quality control ensures that your composite wall will comfortably withstand the rigours of daily life and the harsh NZ environment. Testing processes include load and impact testing to conform to major authorities.

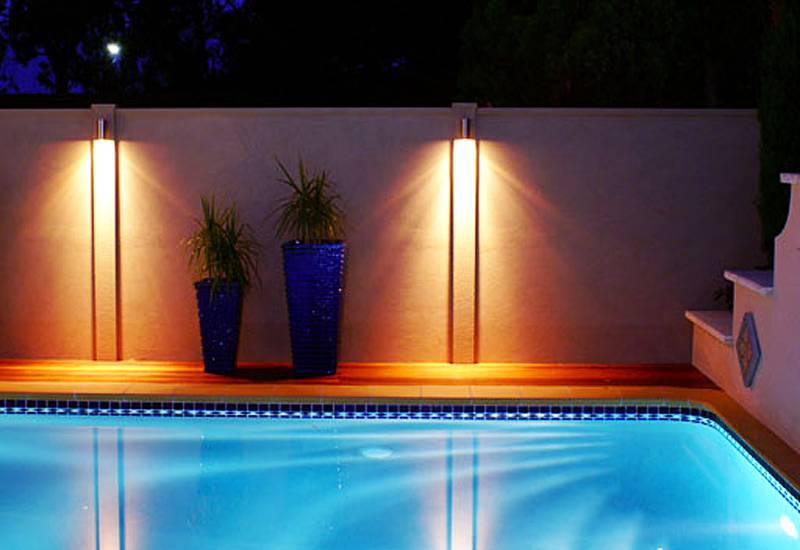

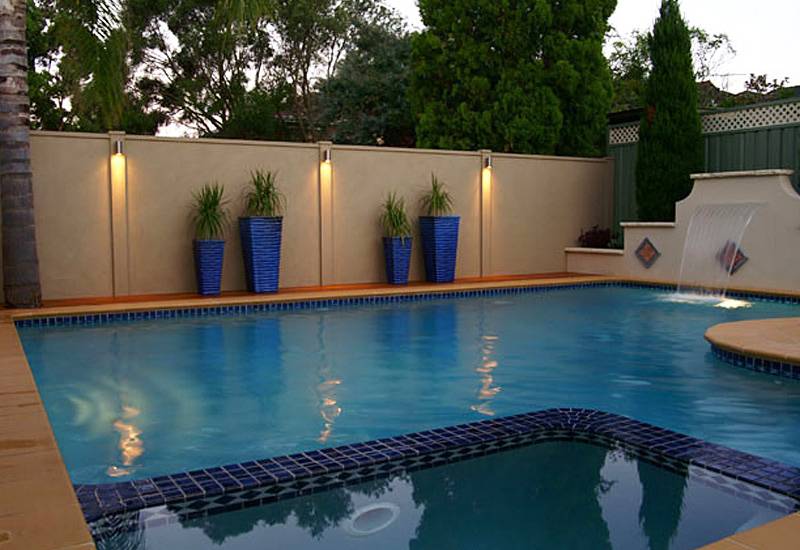

Get the benefits of privacy, security and noise reduction for your premises with our great looking composite barrier walls. All without the high construction costs of other systems. Our wall panels have internal recesses to allow running of electrical cables for security cameras, lighting, intercoms etc.
The barrier walls have superb sound reduction qualities. Typically you will experience a 20-decibel reduction from standard road noise. (National Acoustic Laboratory test available upon request).

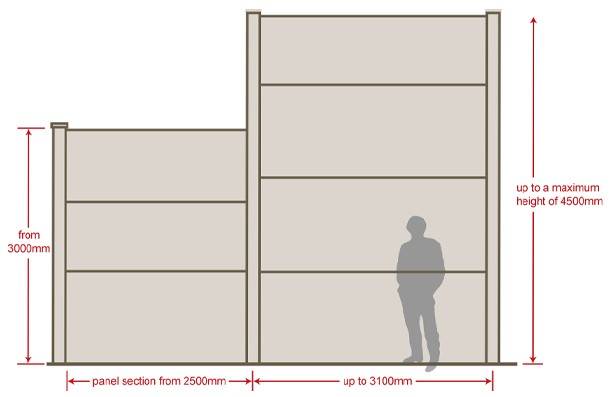

Our barrier walls have a panel thickness of 75mm and are available with either external or flush top wall capping. Posts measure 150mm (face) x 250mm (deep). Each standard wall section has an effective length of 2500mm, 2800mm or 3100mm when measured between post centres.
Available in heights of 3.0 metres to 4.5 metres.
Note – for walls up to 3.0-metres in height we can utilise other post styles from our domestic range if preferred.
Designed and manufactured from a high-tensile, galvanised material, the support columns are Dyna primed and coated on both sides with a specific top coat to enhance performance and accept all modern acrylic coatings.
If you need a customised solution, let us know.
These support columns are project specific in regard to their specifications in both grade and size. Typically a 250 UB galvanised to AS4600 will be utilised in most applications.
Our walls are quick and easy to assemble. Two people can easily lift and manoeuvre the panels, and can usually put up 20 to 25 metres of 1.8-metre high Classic wall each day. This is the case even in hard-to-access sites.
There is no need for heavy construction, digging equipment, or cranes. Step-by-step DIY instructions are provided that any good DIY handyman should be able to follow.
For a professional finish, you can always consider having your fence installed by an professional, builder, or fencer.
